welding accessories gouging carbon rod manufacturer

Material: Graphite
Welding Current: DC 150~1600A

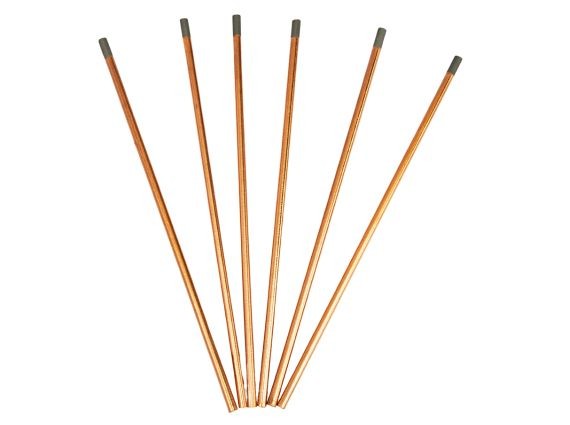

Pointed Copper -Coated ,Jointed & Non Jointed Gouging Carbon Rods，use for cutting welding defects removing ,making holes ,welding inspeciton

PART NO.	NJ & JOINTED
APPLICATION	GOUNGING CARBON RODS FOR CUTTING WELDING DEFECTS REMOVING, MAKING HOLES ETC.
LENGTH	305MM/355MM/455MM/510MM
ANGLE	3.2/4/5/6/6.5/7/8/9/10/11/12/13/16/19/25MM
DIAMETER	5MM/8MM/10MM/12MM/15MM
CURRENT RANGE	130-1600A
CERTIFICATION	ISO9001, CCC

electrodes (8).jpg

electrodes (48).jpg

Diameter * Length ( mm )	Diameter * Length ( inches )	Current Range ( A )
3.2*305	1/8*12'	130-180
4*305(355)	5/32*12'(14')	150-200
5*305(355)	3/16*12'(14')	200-250
6*305(355)(400)(455)(510)	15/64*12'(14')(16')(18')(20')	15/64*12'(14')(16')(18')(20')
6.5*305(355)	1/4*12'(14')	320-370
7*355	9/32*14'	350-400
8*305(355)(400)(455)(510)	5/16*12'(14')(16')(18')(20')	400-450
9*305(355)	23/64*12'(14')	450-500
9.5*305(355)	3/8*12'(14')	500-550
10*305(355)(400)(455)(510)	3/8*12'(14')(16')(18')(20')	550-600
11*305(355)	7/16*12'(14')	600-650
12*305(355)	15/32*12'(14')	750-850
12.7*305(355)	1/2*12'(14')	800-1000
13*305(355)	1/2*12'(14')	800-1000
16*305(355)	5/8*12'(14')	1000-1200
19*305(355)	3/4*12'(14')	1200-1400

Process description

Air carbon arc gouging works as follows. An electric arc is generated between the tip of a carbon electrode and the workpiece. The metal becomes molten and a high velocity air jet streams down the electrode to blow it away, thus leaving a clean groove. The process is simple to apply (using the same equipment as MMA welding), has a high metal removal rate, and gouge profile can be closely controlled. Disadvantages are that the air jet causes the molten metal to be ejected over quite a large distance and, because of high currents (up to 2000A) and high air pressures (80 to 100 psi), it can be very noisy.

Application

As air carbon arc gouging does not rely on oxidation it can be applied to a wide range of metals. DC (electrode positive) is normally preferred for steel and stainless steel but AC is more effective for cast iron, copper and nickel alloys. Typical applications include back gouging, removal of surface and internal defects, removal of excess weld metal and preparation of bevel edges for welding.
